MOTORIZED SPRAYERS SMOG

  • Suitable for any type of liquid with any viscosity
  • Nebulize in small particles the liquids for perfect distribution
  • Can spray more liquids at the same time
  • No need for high pressure to nebulize the liquids
  • Flow rate can range from 0,1 up to 40 litres per minute, always guaranteeing  a good nebulization
  • Thanks to the large hole injector, blockage of the nozzle is rare
  • Very easy to clean
Follow a manual added linkLink to: Contacts

TECHNICAL DETAILS

The use of the motorised sprayer’s series SMOG allows the spraying of any type of liquid at any viscosity into the mixer without excessive energy consumption.
Thanks to the injection nozzle of 11 mm the sprayer avoids blockages and dirtiness.
The nebulization occurs by centrifugal spinning of the injection chamber that forms small droplets of the liquids.
Once the liquids reaches the outlet of the sprayer, it combines with the air supplied through the blower and forms a fog effect.

With this system, high pressure is not required or the use of filters, maintenance is reduced and the quality of the spraying/mixing will improve.

Using the SMOG motorized sprayer, it is possible simultaneously to nebulise various liquids such as oil, fats, water, molasses, glucose, flavours, waxes, resins, etc…

TYPEASSEMBLYRANGEASSISTEDKWNOTE
SMOGUPPER MOUNTING0-30 L/MINAIR1.1ANY LIQUID AND PRESSURE
SMOG XLUPPER MOUNTING0-40 L/MINAIR1.1ANY LIQUID AND PRESSURE

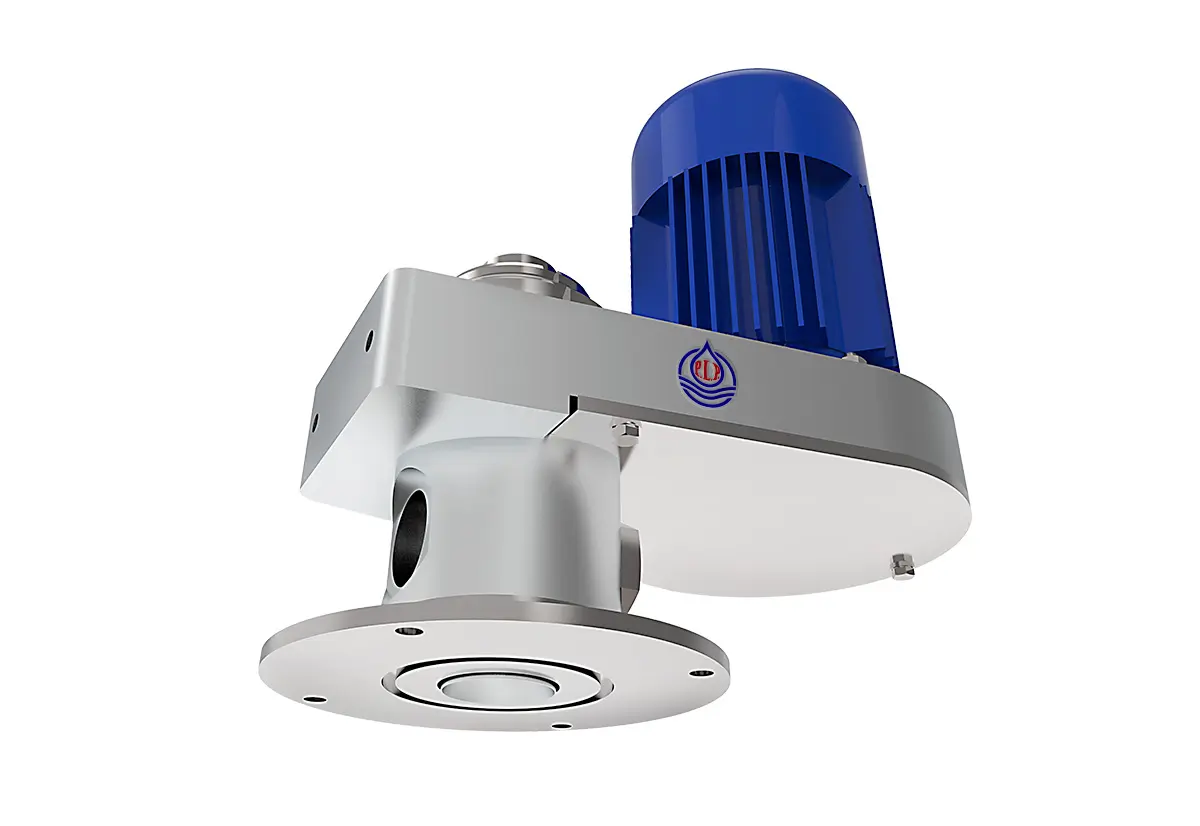

MICRO SMOGUPPER MOUNTING0-20 L/MINAIR0.13ANY LIQUID AND PRESSURE
PECO SMOGUPPER MOUNTING0-20 L/MINSTEAM0.12VISCOUS LIQUID
