STATIC SPRAYERS

Home / Systems and machinery / Liquids / Liquid spraying systems  / Static sprayers

SGP – SOG – TLS

  • Suitable also for very viscous liquids
  • Anti drop systems
  • Anti-clogging systems

Follow a manual added linkLink to: Contacts

TECHNICAL DETAILS

  • SGP
    The SGP sprayer is suitable for spraying clean liquids of medium and low viscosity such as oil, fats, water, acids, flavours… This type of sprayer requires pressure to move the liquid and is powered by pneumatic air.

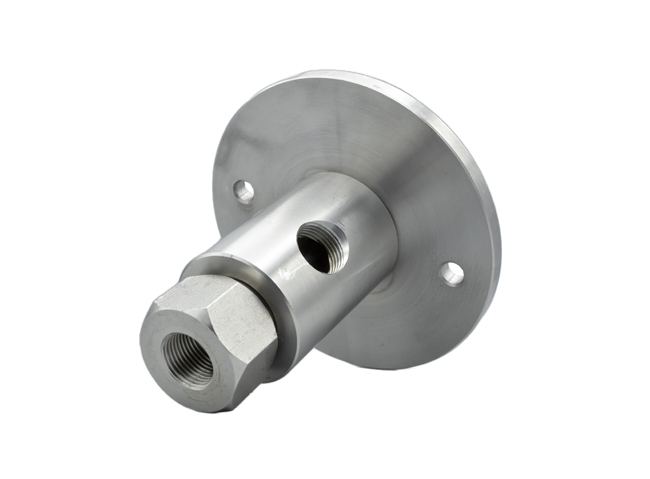

  • SOG
    The SOG was designed for spraying molasses in the cubing press using steam, and is nevertheless suitable in all those situations where dense liquids are to be sprayed.
    Thanks to injectors with 5 mm outlets, it is largely used for spraying liquids with particles in suspension. This type of sprayer is powered by steam or pneumatic air.

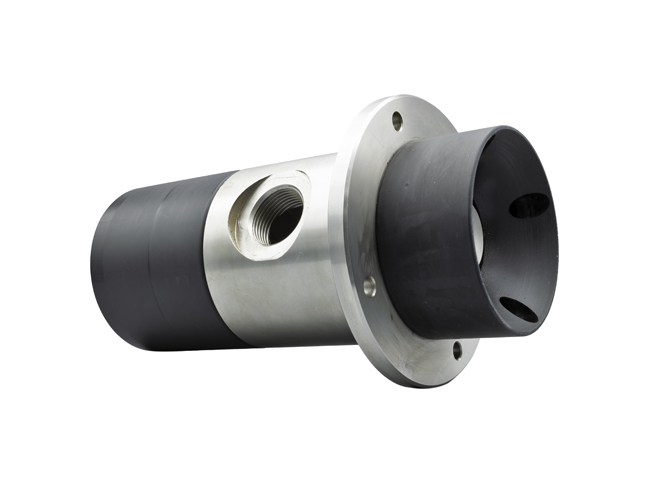

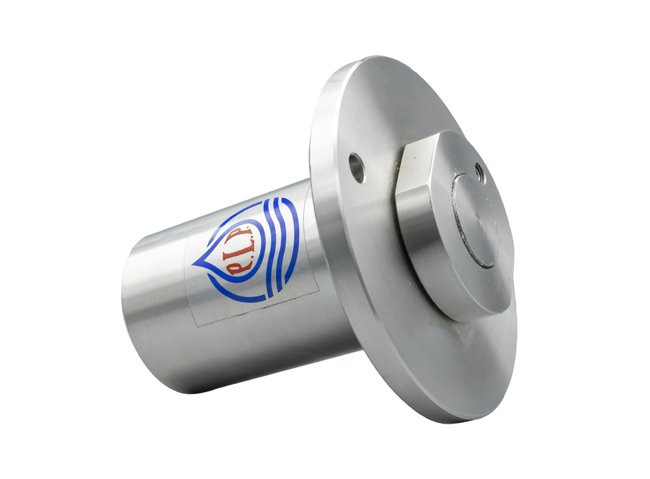

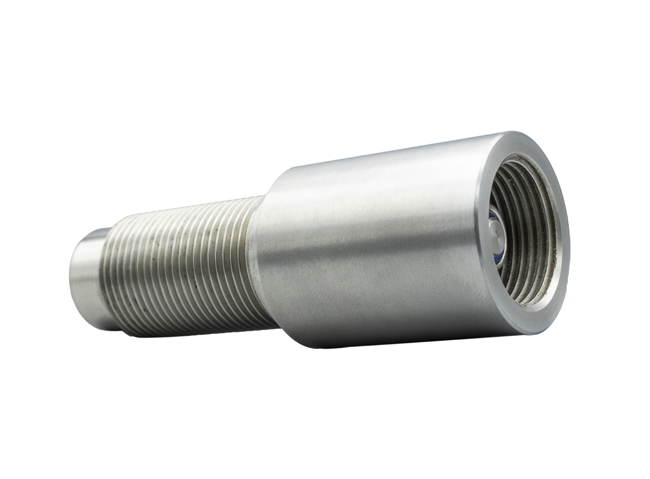

  • TLS
    The TLS nozzle is used to spray various liquids, even at high viscosity and with solid bodies in suspension. Its special construction guarantees a firm closure of the sprayer nozzle on completion of the cycle, avoiding the continuous dripping of traditional nozzles and, above all, it does not have problems with clogging.
TYPEASSEMBLYRANGEASSISTED
TLS1SIDE/TOP5-30 L/MIN/
TLS 1 XTOP//
TLS 0,5SIDE/TOP0-20 L/MIN/
TLS ON LINESIDE/TOP//
SOG
TOP0-20 L/MINSTEAM ASSIST
SGPTOP0-8 L/MINAIR PRESSURE
